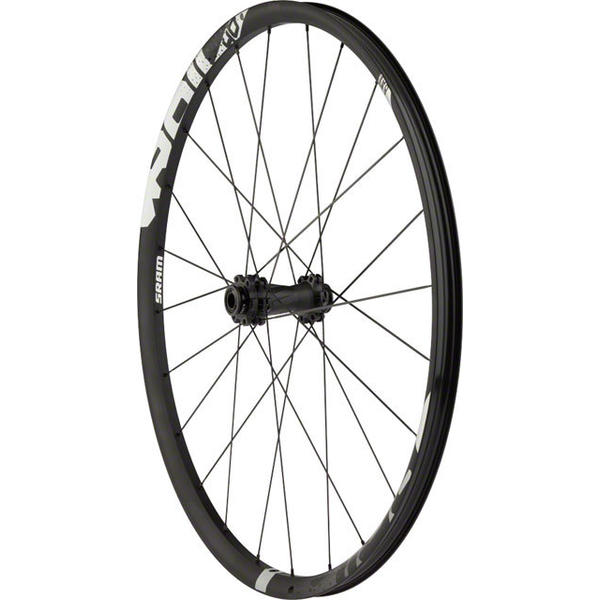

SRAM Rail 40 27.5-inch Front Wheel

SRAM Rail 40 27.5-inch Front Wheel
110 x 15mm
Cassette Compatibility:
Please select options
Order now and pick up in-store for free


Ready to attack, easy to maneuver. With Wide Angle rim design providing superior stability, RAIL 40 can withstand the most aggressive All-Mountain / Enduro riding by setting a new benchmark for stiffness in its category. Featuring the perfect balance of strength, lightweight and width for enduro terrain, RAIL 40 delivers high-performance ride quality all the way down.

- UST Tubeless
- Convertible axles: Front Hub - QR 9x100, QR Torque Caps, 15x100, 15x100 Torque Caps, 20x110, 15x110, 15x110 Torque Caps.
- Tire Type: Tubeless Ready Clincher

Tubeless Rim/Tire Cross-Section

Going tubeless allows you to run lower tire pressures without the added weight of a tube. Lower tire pressure has many benefits, including greater traction, lower rolling resistance over rough surfaces, and decreased risk of a puncture-related flat.

Tubeless-ready rims and tires are parts of a complete system that eliminate the need for tubes by creating an airtight chamber between the rim and tire. Liquid sealant is added to the chamber to fill small punctures and maintain air pressure while you ride.

UST (Universal Standard for Tubeless) is a specific type of tubeless system that dictates the shape of the rim and tire bead. UST rims should be paired with UST-specific tires for best results.


Rim Material SRAM Rail 40 Asymmetric alloy, UST - asymmetrical 2.5mm offset TAPER CORE
Brake Compatibility 6-Bolt Disc
Inner Rim Width 23mm
Outer Rim Width 28mm
Hub SRAM 40, Speedball bearings
Spokes Solo Spoke—double butted spokes, Straight Pull, Round
Spoke Count 24
Nipples External, Alloy
Axle 110 x 15mm
Lacing 2 cross
Valve Type Medium Presta Valve 41-55mm
Extras Skewer included

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
110 x 15mm / N/A / Black / 27.5-inch 710845773013 00.1918.263.001 210000053444
